CONTROL PANELS

for doors and gates



USER INTERFACE options

  • Basic DIP switch
  • LED numerical display with buttons
  • LCD text display with buttons

ACCESS FUNCTIONS

  • Wired in open commands
  • Remote controls
  • User database via LCD display

SAFETY FUNCTIONS

  • Fixed function wired input
  • Programmable function wired inputs
  • Bus connected safety devices



               Which control panel do i need?

Find the correct motor code



The first step is to identify your motor. There are usually several motor versions of each product. You can't always tell by looking, and we can't always tell from a photo.

Each motor has an ID plate or sticker that states the product code, as well as voltage, power, serial number etc. You need to get the "TIPO" number. Tipo just means type in Italian.

Control panel selector
Panel Motors Features
ZA3P FROG-A A3000 A5000 F1000 Double leaf gate, 230V motors, optional limit switches
ZL180 A3024N A5024N Double leaf gate, 230V motors, integrated (R) limit switches
ZL92 STYLO MYTO FROG-J Double leaf gate, 24V motor, integrated encoder
ZM3E FROG-AE AX302304 AX4023006 AX71230 Double leaf gate, 230V motor, integrated encoder and separate encoders
ZLJ24 FROG-A24E FROG-A24 AX3024 AX5024 Double leaf gate, 24V motor, integrated encoder and separate encoders
ZBK BK1200 BK1800 BK2200 Sliding gate 230V motor, limit switches
ZBX6N BX704 Sliding gate 230V motor, limit switches
ZBX7N BX708 Sliding gate 230V motor, limit switches
ZN7 all BXV Sliding gate 24V motor, limit switches and encoder

               Control Panel Functions

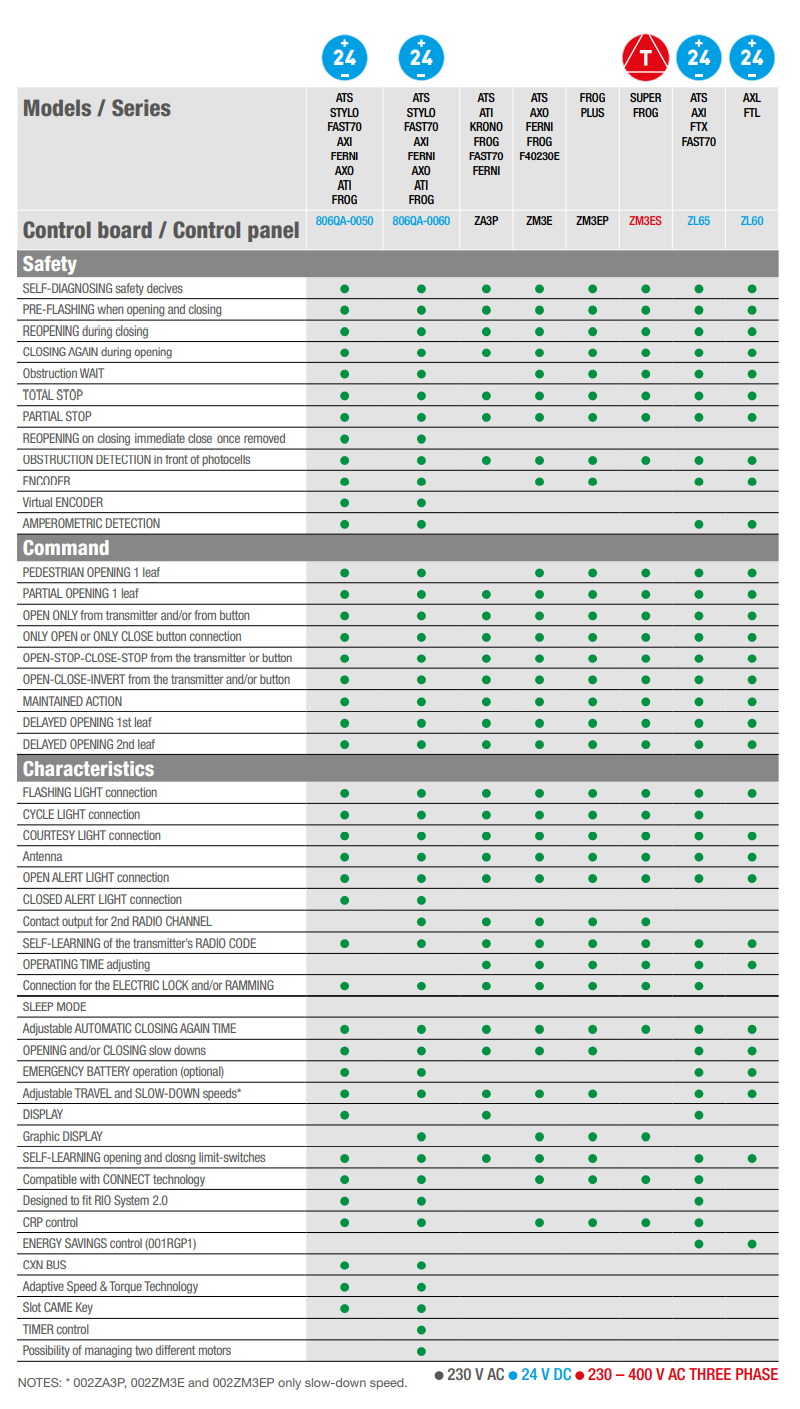

Came control panel function table Came control panel function table

               Control Panel Functions Explained

24Vdc motors are more efficient, so are used on frequent use applications such as apartment block and car parks. They can also be fitted with battery backups.

This symbol means CAME key compatible. This is a Wifi tool for installers to setup a system and monitor it.

Three phase motors are only used in the most powerful openers. This is old technology. Only industrial sites have 3 phase power available. There are few safety features built into 3 phase controllers.

CAME Connect is the cloud access device for control panels. It allows users to operate the gate from a smartphone, and gives support engineers remote access to the controller.

Brushless are low voltage motors with 3 or more windings. Speed and therfore position are controlled precisely. The controllers are complex and expensive.

CAME's wireless safety devices are named RIO. This symbol means the controller can take the plug-in interface and programming for RIO wireless devices.

Most motors have encoders now. Encoders monitor motor revolutions giving the controller movement and position information necessary for pressure sensing.

CAME's wireless safety devices are named RIO. This symbol means the controller can take the plug-in interface and programming for RIO wireless devices.

Battery operated devices that send their signal via radio signal to the controller.

Battery operated devices that may or may not send their signal via radio signal to the controller.

Control Panel User interface

DIP switches Small PCB based switches for setting function
Navigation buttons Small PCB based buttons for selecting and editing parameters on a display
LED display Numerical only display, usually 3 digits for programming. Used with navigation buttons
LCD display Graphical display with text prompts. Used with navigation buttons



Control Panel Safety features

Encoder Motor sensor that provides position information, and enables obstacle detection
PSR Pressure sensitive reversal causes the gate to stop or reverse when the gate comes against an obstacle
Amperometric An older obstacle detection system based on measuring current in a 24V motor
Phototest A periodic test of safety device inputs to comply with EN954 cat2.



Control Panel Connectivity

CXN bus 2 wire bus for connecting many compatible safety and command devices
RS485 Serial communication port to link two motors, or connect a controller
CAME key A plug in key used by installers to programme via Wifi connection
CAME connect A plug in connection to the cloud. Allows activation via a phone app

Control Panel Features

Pedestrian open Opens one gate leaf or both only enough for pedestrian access
Partial stop Both leaves pause, then restart in the same direction when the obstruction is removed
Total stop Both leaves stop. Gates only restart on the next command
Man present Man present is a safety mode requiring a wired input to be held for the gate to continue moving
Open only Input mode, applied to multi-user remotes, and used for exit sensors
4 step auto An input that responds to OPEN -STOP -CLOSE -STOP sequence. 2 step auto is OPEN - CLOSE only

Control Panel Outputs

Cycle light A warning light that flashes while the gate or door is moving
Courtesy light Output for driveway lights. Stays on for a while after gate has closed.
Channel B A second radio channel output. Could be used for a garage door.
Ram action Feature to reverse the motor to help release an electric bolt
Maglock A locking magnet for extra security. Power to secure
